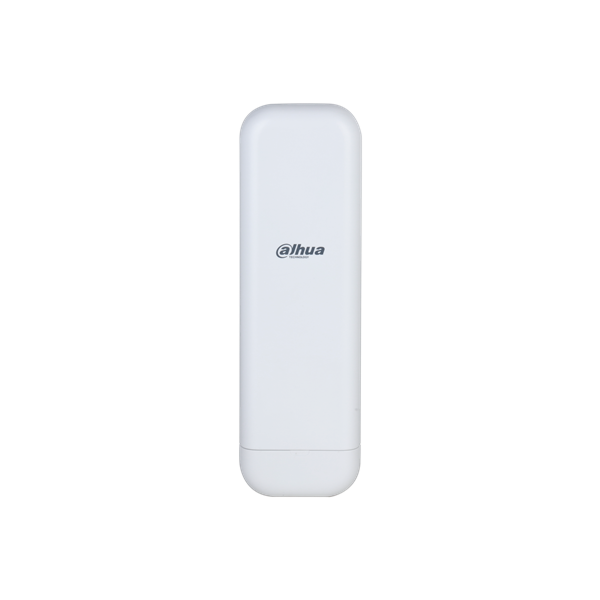

WBC5-45AC-03P, 45degree Wireless Bridge Max 3KM PoE

Delivery time 1 - 2 working days

€246,95€204,09 Incl. VATExcl. VAT

    • American Express
    • Apple Pay
    • Bancontact
    • BLIK
    • Google Pay
    • iDEAL
    • Klarna
    • Maestro
    • Mastercard
    • MobilePay
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa

    Cheaper somewhere else?

    Lowest price guarantee

    With our lowest price guarantee, you no longer have to compare, we already do that for you. Find the exact same product cheaper elsewhere before you buy? Let us know and we will adjust our price.

    The small print

    • The product has the same specifications and color.
    • The product is sold by a Dutch brand dealer (warranty included).
    • The product is available from stock. You can pick it up immediately or it will be delivered to your home the next day.
    • The price guarantee is given on the sale price, without shipping costs or other services.
    • The lowest price guarantee is valid until the moment of purchase.

    • Pay afterwards within 30 days - both private and business

      <p>Pay afterwards within 30 days - both private and business</p>
    B2B Installers order with discount

    Register B2B company

    Are you a professional installer looking for new opportunities and long-term partnerships? Then join our growing network of reliable B2B installers!

    What do we offer you?
    - Access to high-quality products and projects
    - Interesting margins and purchasing conditions
    - Technical support and training
    - A reliable partnership

    Signing up is easy:
    Fill out the online form and we'll contact you soon for an initial introduction.

    Together, we'll make every project a success.
    Sign up today and grow with us!

    • The best service and warranty
    • Free returns within 14 days
    • Free remote installation

    check Associated products for WBC5-45AC-03P, 45degree Wireless Bridge Max 3KM PoE

    Size chart

    Dahua's wireless bridges offer reliable and powerful wireless connectivity for camera applications, among others. These bridges have dedicated antennas with PoE input and output, suitable for point-to-point, point-to-multi-point and back-to-back applications. Each antenna has a convenient Wi-Fi management function for local network, configuration and monitoring via WebUI, with simple installation indicators on the side. Dahua's wireless bridges offer flexible and high-quality solutions for wireless video applications.

    The Dahua WBC5 series is an ideal solution for making wireless connections to camera products. The specifications are for reference, the final performance is environment-dependent. This solution lends itself perfectly to wireless connection to camera masts or outbuildings without their own network facilities, for example. The feasibility of the connection is indicated in kilometres.

    WBC5-45AC-03P, 45degree Wireless Bridge Max 3KM PoEFree line-of-sight is required for good stable operation:

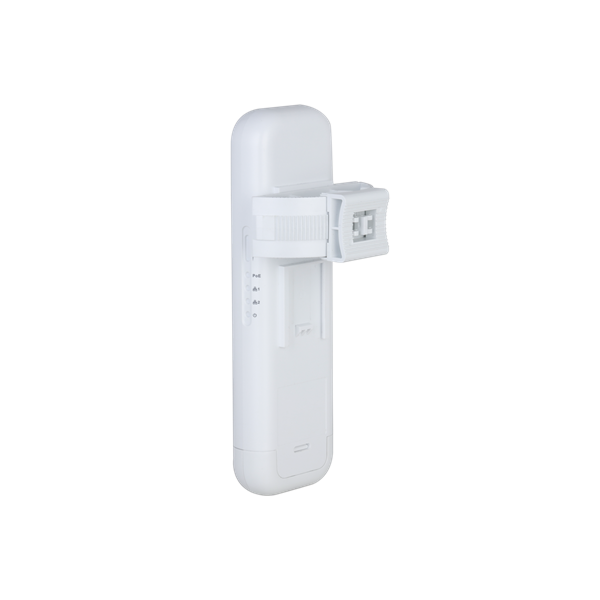

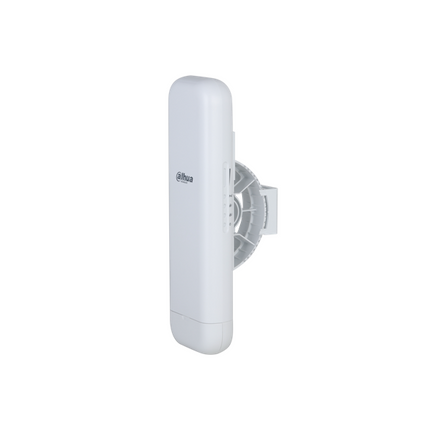

    For proper operation, the antennas must have a free view to each other. Buildings, trees and other obstacles should be avoided. The antennas are equipped with a signal indicator that shows the quality of the connection. The hose clamp supplied is suitable for poles with a diameter between59and 82mm
    A longer clamp is available as an accessory.

    Specifications:

    Hardware Interface 1 × PoE RJ-45 (1000 Mbps);
    1 × LAN RJ-45 (100 Mbps)
    Power module connector 1 × PoE RJ-45 (IN: 30 W)
    Wireless standard 2.4GHz: 802.11b/g/n;
    5GHz: 802.11a/n/ac
    Voeding PoE IN: 802.3at;
    PoE OUT: 802.3af
    Power adapter included Yes
    Included antenna Yes
    Ethernet ports 2
    Ethernet port speed 10/100/1000 Mbps
    Resetknop 1
    Energy consumption < 30 W
    External port 2 × RJ-45; 1 × Reset
    Indicator lights 1 × power indicator;
    2 × LAN port indicators;
    1 × PoE indicator;
    3 × wireless signal strength indicators
    Functies Encryption mode WPA-PSK/AES/TKIP
    Manage and log Syslog; NTP
    Webpage Configuration Manage via web configuration
    Firmware-update Webupdate
    Wireless Certification CE/FCC
    Security mechanism WPA/WPA2; hidden SSID
    Network protocol UDP; TCP; HTTPS; IPv4; NTP; DHCP
    TDMA-verbetering Yes
    TDMA Yes
    Algemeen Range Up to 3KM at an angle of 45°
    Operating temperature -30 °C to +65 °C (-22 °F to +149 °F)
    Storage temperature -40 °C to +80 °C (-40 °F to +176 °F)
    Operating humidity 5%-95% (RH), non-condensing
    Brutogewicht 0.46 kg (1.01 lb)
    Nettogewicht 0.37 kg (0.82 lb)
    Packaging dimensions 297 mm × 110 mm × 108 mm (11.7" × 4.33"×4.25" )
    Product dimensions 268 mm × 82 mm × 35 mm (10.55" × 3.23"×1.38" )
    Geheugen 1 Gb
    Montage Mounting bracket for pole included
    Static Protection Air Discharge: 15 kV;
    Contact Discharge: 8 kV
    Lightning protection Common mode: 6 kV;
    Differential mode: 4 kV
    Installatie Paalmontage
