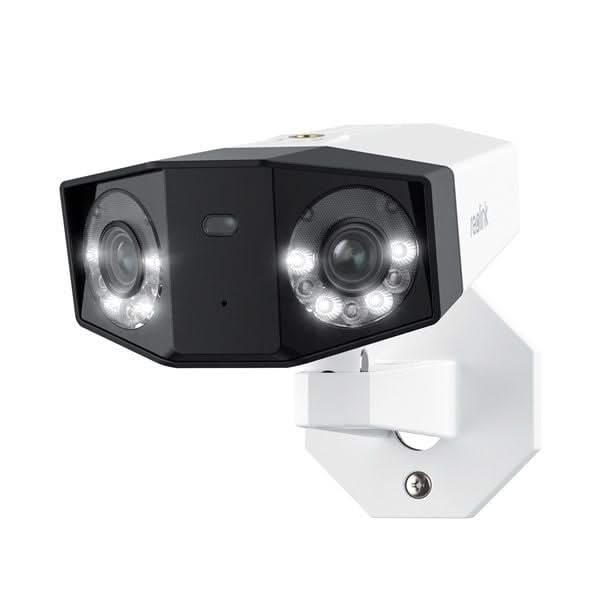

Duo 2, 8/MP 4K Dual-lens panorama camera with 180° ultra wide viewing angle with PoE

Duo PoE, can merge two images into one without spacing, providing a true combination of two cameras. It produces a smooth image with a double field of view and no overlapping parts.

The whole world is captured in crystal-clear videos with 4K high resolution and expanded perspective. Every small detail is captured with pinpoint accuracy.

Reolink Duo 2 has become more intelligent. It can detect not only moving people and vehicles, but also your cats and dogs. Moreover, with the built-in microphone and speaker, it is quite easy to respond to the approaching person, car or pet.

Spotlights and infrared LEDs provide a clear view at night. You can easily switch between different night vision modes to view clear and smooth videos in color or black and white.

Thanks to the Duo 2's PoE technology and ultra-wide-angle, it's enough to achieve dual wide-field surveillance via just a network cable to transmit power and data. More convenience, more security.

It's never difficult to withstand harsh weather conditions outdoors thanks to the Duo 2's rugged and waterproof housing. No fear of heat, cold or powerful water jets.

Specifications:

• Video and Audio
• Image sensor 1/3" - CMOS sensors
• Video resolution - Standard: 2560X1440 (4.0 Megapixels) at 22 frames/sec
• Lens - f = 4.0 mm fixed, F = 2.0
• Video format - H.264
• Field of view - Horizontal: 150° - Vertical: 44°
• Day night - Automatic switching with IR cut filter
• Infrared night vision - 30 meters (LED: 6 pcs/20mil/850nm)
• Color night vision - Spotlight: 8 pcs/5W/6500K/560 lumens
• Sound - Two-way audio

  Current
• POE - IEEE 802.3af, 48V Active
• DC Power - DC 12V⎓2A, <12W

  Torque
• Current - DC power port

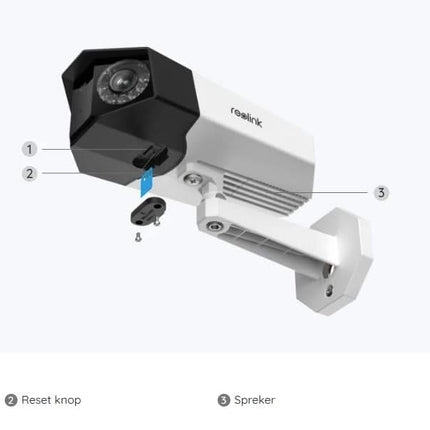

• System - Reset button
• Ethernet - One 10M/100Mbps; RJ45

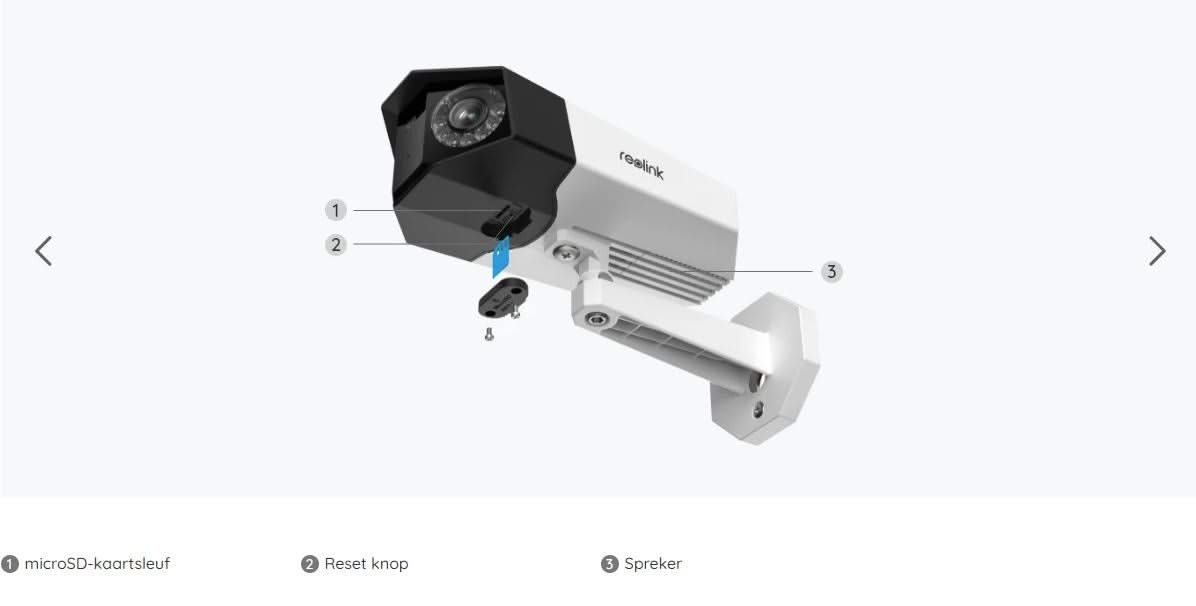

• Storage - microSD card slot (up to 256GB)
• Sound - Built-in microphone and speaker

  Software Features
• Frame rate - Mainstream: 2 fps - 25 fps (default: 22 fps) - Substream: 4 fps - 15 fps (default: 10 fps)
• Code rate - Mainstream: 1024 Kbps -5120 Kbps (default: 4096 Kbps) - Substream: 64 Kbps - 512 Kbps (default: 256 Kbps)
• Browser - supported Edge, Chrome, Firefox, Safari
• Operating system supported - PC: Windows, Mac OS;
• Smartphone- : iOS, Android Smart alarm clock
• Motion detection/person detection/vehicle detection - Recording mode Motion-controlled recording (default); scheduled recording; 24/7 recording
• Protocols and standards - HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
• Maximum user access - 20 users (1 administrator account and 19 user accounts); Support for up to 12 simultaneous video streams (10 substreams and 2 mainstreams)

  Operating Environment
• Temperature - Operating temperature: -10°C~+55°C (14°F~131°F)
• Humidity - Operating humidity: 10% ~ 90%
• Water resistant - IP66

  Dimensions and weight
• Dimension - 195x103x56mm
• Weight - 650g
