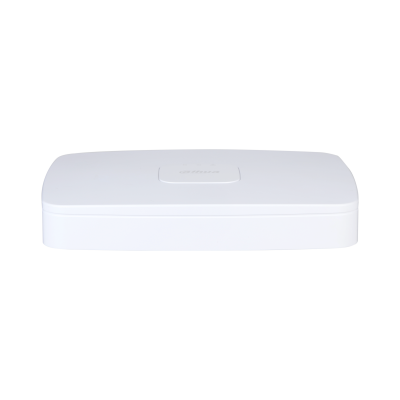

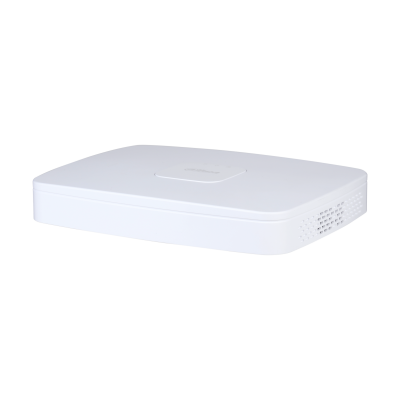

NVR2108-S3, 1x LAN (No PoE) Suitable for 8 IP cameras

The Dahua NVR2108-S3 is an 8-channel network video recorder from Dahua's "Lite" series, designed to provide reliable video recording and playback within small to medium surveillance systems. With support for cameras up to 12 MP, a maximum bandwidth of 80 Mbps and smart AI features, it is well equipped for modern IP surveillance.

Key features & specifications

• Number of channels: 8 IP camera inputs.

• Video compression & formats: Supports Smart H.265+/H.265 and Smart H.264+/H.264 - ensuring more efficient use of bandwidth and storage.

• Resolution & decoding:

  • Maximum camera resolution up to 12 MP (~4000 × 3000 pixels).

  • Decoding up to 1 channel 12 MP@30fps, or 6 channels in 1080p@30fps.

• Bandwidth:

  • Input (access): 80 Mbps

  • Storage: 80 Mbps

  • Throughput: 60 Mbps

• Storage: One SATA connector that supports a hard drive up to 16 TB.

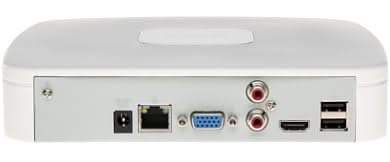

• Video outputs: 1 × HDMI + 1 × VGA, simultaneous use possible.

• Network/protocols: Supports ONVIF (profiles T/S/G), HTTP, HTTPS, RTSP, UPnP, DDNS and more. Mobile access capability (Android/iOS).

• Smart AI features:

  • Perimeter protection via camera (4 channels).

  • SMD Plus (Smart Motion Detection) up to 4 channels: filters human/motor vehicle motion and reduces false alarms due to e.g. leaves or light change.

• Physical properties:

  • Dimensions: approx. 204.6 × 206.4 × 45.6 mm

  • Weight: approx. 0.42 kg

• Power & consumption: 12 V DC power supply, power consumption ≤ 10 W (without HDD)

• Environment: Operates at temperatures between -10 °C and +55 °C, humidity 10-93%
