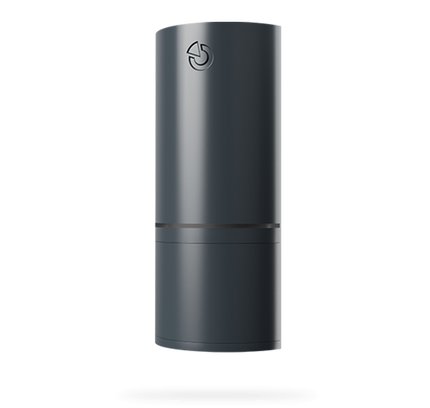

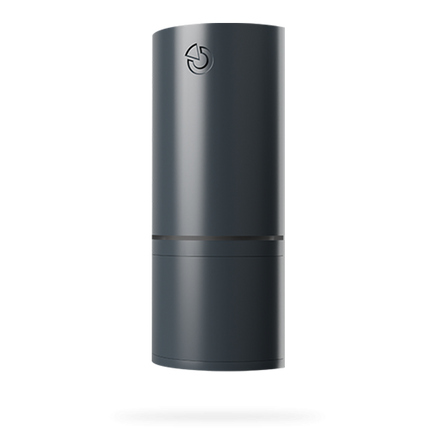

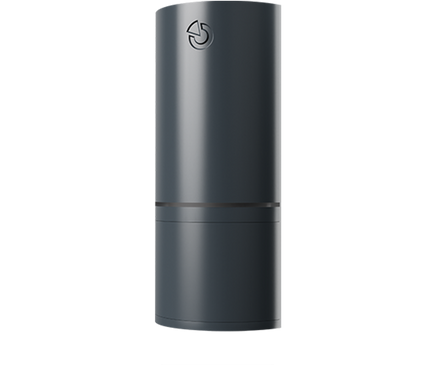

Jablotron JA-162PW-AN, Wireless Designline Dual MW PIR anthracite

JA-162PW-AN, Wireless Designline Dual MW PIR anthracite

This product is a wireless device of the system JABLOTRON 100+. This detector is designed to detect human body movements in buildings. High immunity against false alarms is achieved thanks to the combination of PIR and microwave (MW) detection. The detector works like a classic PIR detector, but if the PIR detects movement in a monitored area, the MW part is activated and confirms the previous PIR activation.

Specificaties:

Voedingsbron

• 2 lithium batteries, type CR123A (3 V/1500 mAh); batteries are not included

Typical battery life

• 4 years

Low charge rate of batteries

• < 2.7 V

Ruststroomverbruik

• 65 μA

Maximaal stroomverbruik

• 50 mA

Communicatieband

• 868.1 MHz, protocol JABLOTRON

Maximum MW radio frequency power (Effective Radiated Power - ERP)

• 25 mW

Communicatiebereik

• about 300 m (open space)
• Recommended installation height 2.2 - 2.5 m above floor level
• Detection angle/PIR coverage 90°/12 m
• Detection angle/MW coverage 80°/12 m
• MW frequency 24.125 GHz
• Maximum MW radio frequency power (Effective Radiated Power - ERP) 30 mW

Maten

• 150 x 63 x 40 mm
• Weight (without batteries) 125 g

Classificatie

• Security grade 2/Environmental class II (according to EN 50131-1)

Operationeel temperatuurbereik

• -10 °C to +40 °C
• Average operating humidity
• 75 % relative humidity, no condensation

Certificatie-instantie

• Trezor Test s.r.o. (No 3025)
• In accordance with
• ETSI EN 300 440, EN 50130-4, EN 55032, EN 62368-1, EN 50581, EN 50131-1, EN 50131-2-4
• Operating conditions according to general authorisation
• ERC REC 70-03
