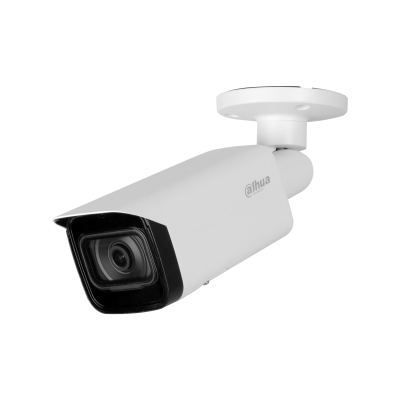

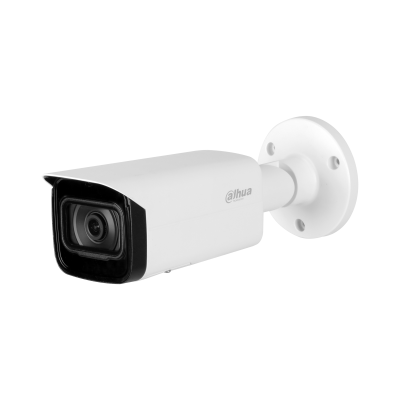

HFW5442T-ASE-S3 2.8mm 4MP Bullet ePoE D/N Deeplight WDR
The WizMind S Series includes a professional range of smart cameras that use AI-Powered image-enhancing technologies (AI ISP) and feature Deeplight; an upgrade to the existing Starlight technology that now uses a deep learning algorithms for image optimisation, enabling the cameras to deliver outstanding images in low-light situations. This allows the cameras to easily adapt to different scenes and perform optimally in different challenging environments.
The cameras in this series offer significantly enhanced audio and video analysis. In the process, they record appearance features in video metadata, distinguish various sounds through advanced sound detection, feature face detection, enhanced perimeter security with 99% accuracy, improved people counting and more smart features.
Eigenschappen:
- 4MP resolution
- Deeplight technology for optimal image performance
- Smart IR backlight
- WizMind AI technology for intelligent detection and smart retrieval
- Image optimisation based on AI
- Option for SD card up to 512GB
- Suitable for 12VDC, PoE and E-PoE power supply
- IP67 housing
Specificaties:
| Aantal beeldsensoren: | 1 |
| Optisch/Thermisch: | Optisch |
| Beeldsensor: | 1/1.8 |
| Resolutie: | 2688 x 1520 |
| Aantal pixels: | 4MP |
| Minimum illumination strength (in colour): | 0.0007 Lux |
| Verlichting: | IR |
| LED afstand: | to 80m |
| LED On/Off (Day/Night): | Auto/Manual |
| Aantal LED(s): | 4 LED |
| Sluitersnelheid: | 1/3s ~1/100000s |
| Ruisonderdrukking: | 3DNR |
| Lens type: | Fixed lens |
| Iris: | Fixed Iris |
| Brandpuntsafstand: | 2.8mm |
| Maximale opening: | F1.6 |
| Horizontale openingshoek: | 112° |
| Verticale openingshoek: | 58° |
| Focusbediening: | No |
| Stream mogelijkheid: | 4 streams |
| Video compressie: | H.264, H.264 +, H.264 B, H.264 H, H.265, H.265 +, MJPEG |
| Frames per second (Main Stream): | 25fps @2688 × 1520 |
| 2de stream: | 25fps D1: 720 x 576 |
| 3de stream: | 25fps @1920 x 1080 |
| 4de stream: | 25fps @1280 x 720 |
| Bitrate: | H.264: 32 Kbps ~ 16384 Kbps H.265: 12 Kbps ~ 11008 Kbps |
| Dag/Nacht: | Auto (filter), Colour, Black/White |
| Lichtcompensatie: | BLC, HLC, WDR(140dB) |
| Bewegingsdetectie: | Aan/Uit |
| | |
| Slimme Functies: | AI Face Capture/Attributes |
| | AI People Counting |
| | AI Perimeter Protection |
| | AI Motion detection |
| | AI Video Metadata |
| | Heatmap |
| | Object Abbonded/Missing |
| Smart IR: | Yes |
| Smart LED: | Auto/Manual |
| Electronic Image Stabilisation(EIS): | No |
| Defog: | Yes |
| Privacy-maskering: | Yes |
| Ingebouwde microfoon: | No |
| Audio ingang: | Yes |
| Audio Uitgang: | Yes |
| Audio Compressie: | AAC, G.711 A, G.711 MU, G.723, G.726 |
| Speaker: | No |
| Ethernet: | RJ-45 (10/100 Base-T) |
| Storage option SD card: | Yes |
| Maximum Storage Capacity SD card: | 512GB |
| RS-485: | No |
| Alarm: | No |
| inclusief voeding: | No |
| Voeding: | 12V DC, PoE (Type IEEE 802.3af), E-PoE |
| Max Verbruik: | 9.8W |
| Werktemperatuur: | -40°C ~ +60°C |
| Waterdichtheid: | IP67 |
| Vandaalbestendig: | IK10 |
| Materiaal | Metal |
| Hoogte | 75.9mm |
| Breedte | 79mm |
| Diepte | 244.1mm |
| Gewicht: | 0.82 Kg |
