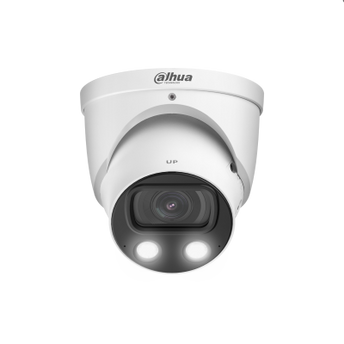

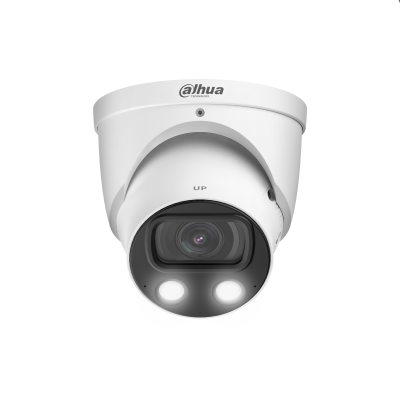

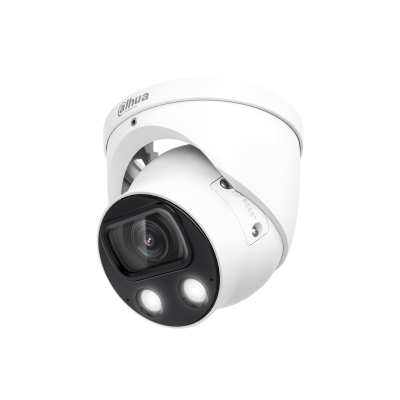

HDW5849H-ASE-LED-S2, 8MP 2.8mm 4K, PoE, Full-colour, Eyeball Fixed lens, WizMind
The WizMind series is a professional line of smart cameras. The light-sensitive high-resolution sensor, auto-iris lens (vari-focal only) and the combination with image optimisation functions such as WDR and 3DNR ensure excellent images in a wide variety of conditions. WizMind cameras feature Starlight and Smart IR technology for dark and low-light situations. The cameras are equipped with artificial intelligence. This technology uses the camera to distinguish between objects and people. In addition, the camera is able to register external characteristics of objects and process them into metadata.
WizMind cameras have features such as face detection, perimeter detection and people count based on AI deep-learning algorithms. The AI technology ensures accurate detection and reduces false alarms. WizMind cameras feature Starlight and Smart IR technology. The cameras come in a dust and water-resistant IP67 housing.
- 8MP resolution with 25fps
- 24/7 colour image with white LED backlight
- WizMind technology for intelligent detection shapes
- H.265 compression for optimal use of bandwidth and storage.
- IP67 Dust and water resistant
- Built-in microphone
- SD card slot for Micro-SD up to 512GB
- Suitable for PoE, ePoE and 12VDC
Specificaties:
| Aantal beeldsensoren: | 1 |
| Optisch/Thermisch: | Optisch |
| Beeldsensor: | 1/1.2 CMOS |
| Resolutie: | 3840 x 2160 |
| Aantal pixels: | 8MP |
| Minimum illumination strength (in colour): | 0.0005 |
| Minimum illumination strength (LED on (black/white)): | 0 lux |
| Verlichting: | White LED |
| LED afstand: | to 50m |
| Aantal LED(s): | 2 LED |
| Sluitersnelheid: | 1/3s ~ 1/100,000s |
| Ruisonderdrukking: | 3DNR |
| Lens type: | Fixed lens |
| Iris: | Fixed Iris |
| Brandpuntsafstand: | 2.8mm |
| Maximale opening: | F1.0 |
| Horizontale openingshoek: | 102° |
| Verticale openingshoek: | 53° |
| Stream mogelijkheid: | 3 streams |
| Video compressie: | H.264, H.264 +, H.265, H.265 + |
| Images per second (Main stream): | 25fps @3840× 2160 |
| 2de stream: | 25fps D1: 720 x 576 |
| 3de stream: | 25fps @1920 x 1080 |
| Bitrate: | H.264: 3 kbps-16384 kbps, H.265: 3 kbps-16384 kbps |
| Dag/Nacht: | Colour, Black/White |
| Lichtcompensatie: | BLC, HLC, WDR(140dB) |
| Bewegingsdetectie: | Aan/Uit |
| | |
| Slimme Functies: | AI Face Capture/Attributes |
| | AI People Counting |
| | AI Perimeter Protection |
| | AI Video Metadata |
| | Heatmap |
| | Object Abbonded/Missing |
| Defog: | Yes |
| Privacy-maskering: | Yes |
| Ingebouwde microfoon: | Yes |
| Audio ingang: | No |
| Audio Uitgang: | No |
| Ethernet: | RJ-45 (10/100 Base-T) |
| Storage option SD card: | Yes |
| Maximum Storage Capacity SD card: | 512GB |
| Alarm: | Yes |
| Number of channels in: | 1x max, 5mA 3V-5 VDC |
| Number of channels off: | 1x max, 300mA 12 VDC |
| Voeding: | 12V DC, PoE (Type IEEE 802.3af), E-PoE |
| Max Verbruik: | Basic: 3.6W (12 VDC); 5W (PoE) max (H.265 + 3 streams + intelligence + LED): 7.9W (12 VDC); 9.6W (PoE) |
| Werktemperatuur: | -40°C ~ +60°C |
| Waterdichtheid: | IP67 |
| Materiaal | Metaal |
| Diameter | Ø122mm |
| Hoogte | 119.7mm |
| Gewicht: | 0.74 Kg |
