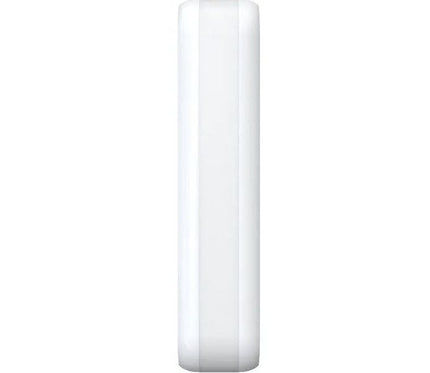

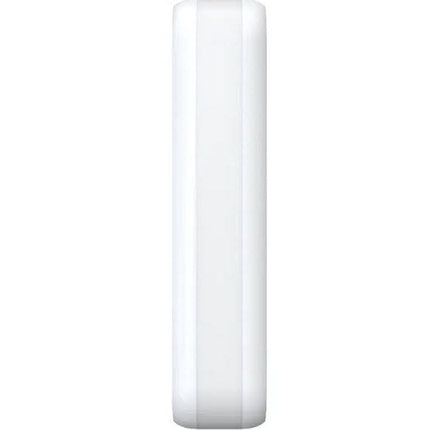

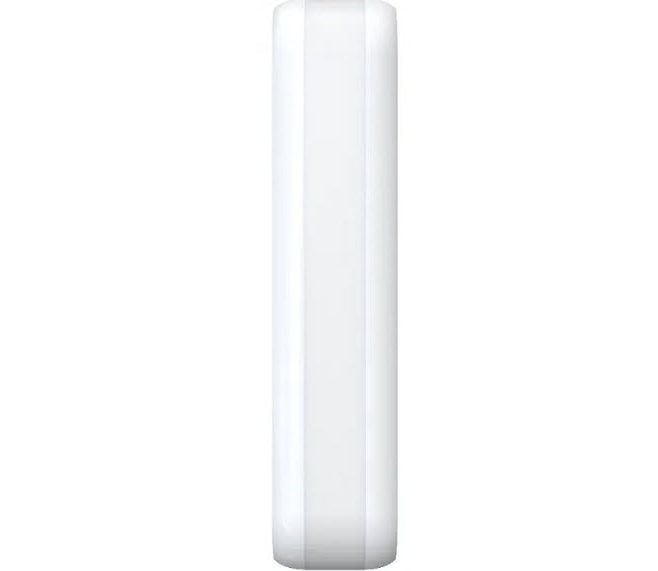

Hikvision DS-PDC10DM-VG3, External dual-tech curtain detector wired

Product form
Delivery time — 1 to 2 business days
Want your whole order delivered quickly?

Choose items that all show “In stock — ready to ship”. Fast delivery applies when every ordered quantity is available. If one item has a longer delivery time, we dispatch your order once it is complete. The longest delivery time then applies.

We dispatch every day except Saturday and Dutch public holidays. For items not in stock, we count business days (Monday to Friday), excluding Dutch public holidays. Supplier or carrier delays may affect the estimate. A delivery date is not yet available for reservations.

Estimated delivery within 1 to 2 business days.

€97,19€80,32 -20% -20%
€77,35€63,93 Incl. VATExcl. VAT

    • American Express
    • Apple Pay
    • Bancontact
    • Bizum
    • BLIK
    • Google Pay
    • iDEAL Wero
    • Maestro
    • Mastercard
    • MobilePay
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    • Pay afterwards within 30 days - both private and business

      <p>Pay afterwards within 30 days - both private and business</p>

    B2B Installers order with discount

    • The best service and warranty
    • Free returns within 14 days
    • Free remote installation

    Barcode: 6931847124724

    Size chart

    Hikvision DS-PDC10DM-VG3, External dual-tech curtain detector wired

    • Slim design for window frame mounting
    • IP65 weather resistance for outdoor application
    • Active IR anti-masking
    • Automatic sensitivity
    • Selectable EOL resistors for alarm and tamper-proof wiring
    • Directional detection support

    Detectie Prestaties

    • Detection Method Passive Infrared; Microwave
    • Detection range

      Muurbevestiging: 10m

      Plafondmontage: 6m

    • Detectiehoek 5°
    • Detectiezones 32
    • Detectable speed 0.2 ~ 3 m/s
    • Gevoeligheid Automatisch
    • Witlichtfilter 6500lux
    • Microwave frequency 24 GHz (24.15 ~ 24.25 GHz)
    • Support for digital temperature compensation
    • Support for creep zone protection
    • Ondersteuning tegen maskering

    Support

    • Ondersteuning bij digitale verwerking
    • Verzegelde optische ondersteuning
    • Sabotagebeveiliging voor; achter
    • Support for directional detection

    Koppel

    • Alarmuitgang Normaal Gesloten
    • LED indicator green (PIR), red (microwave), green + orange (mask), blue (alarm)

    Overdragen

    • Overdrachtsmethode Bedraad

    Elektrische kenmerken

    • Stroomverbruik 22mA Max
    • Power supply9 to 16 VDC
    • Typical voltage 12 VDC

    Algemeen

    • Operating temperature -25 °C to 60 °C (-13 °F to 140 °F)
    • Storage temperature -25 °C to 60 °C (-13 °F to 140 °F)
    • Bedrijfsvochtigheid 10% tot 90%
    • IP-waarde IP65
    • Dimensions (WxHxD) 29.2 mm × 134.4 mm × 39.5 mm
    • 79g
    • Mounting height 2 to 4m
    • Montagemethode Muur;Plafond
    • Application scenarioIndoor,Outdoor
    • Beugel L-vormige adapter inbegrepen
