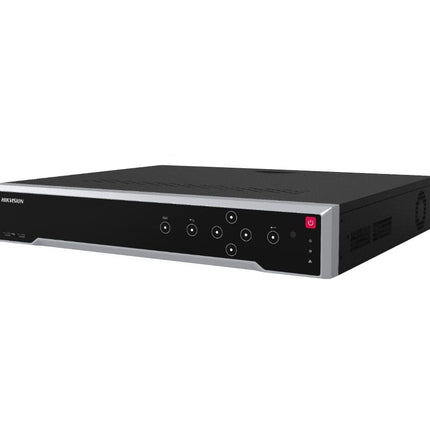

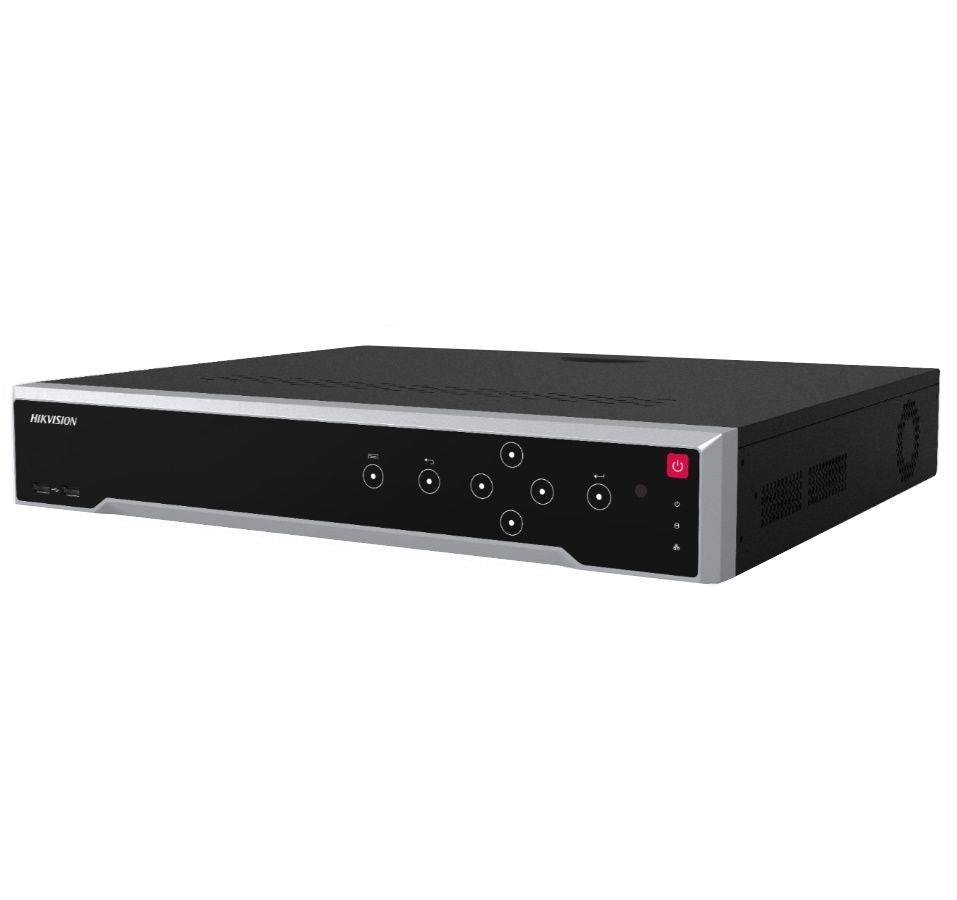

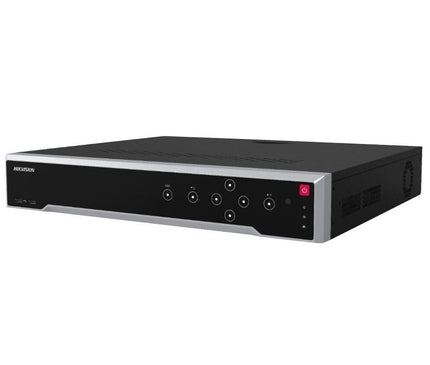

Hikvision DS-7716NI-M4/16P NVR with 16x PoE channels, 8K, 4x SATA, this 1.5U Network Video Recorder is a heavy duty recorder for the demanding customer with many 4K or 8K cameras in the system.
Belangrijke kenmerken;
- IP-Video-Ingang16-kan
- Up to 32 MP resolution
- *: After ultra HD resolution mode is enabled, the NVR supports up to 8-channel 32 MP/24 MP IP video inputs.
- Incoming Bandwidth256 Mbps
- Outgoing Bandwidth256 Mbps
- HDMI 1-Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- HDMI 2-Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz , 1024 × 768/60Hz
- VGA Output1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Video Output ModeHDMI1/VGA simultaneous output, HDMI2/VGA independent output
- CVBS Output1-channel, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output1-channel, RCA (linear, 1 KΩ)
- Way Audio1-channel, RCA (2.0 Vp-p, 1 KΩ, via audio input)
Decodering
- DecodeerformaatH.265+/H.265/H.264+/H.264
- Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
- *: After the ultra HD resolution mode is enabled, the NVR supports up to 8-channel 32 MP/24 MP IP video inputs.
- Synchroon Afspelen16-kan
- Decodeerbaarheid2-kan@32 MP (30 fps)/2-kan@24 MP (30 fps)/4-kan@12 MP (20 fps)/8-kan@8 MP (25 fps)/16-kan@4 MP (30 fps)
- Dual-Stream Recording Support
- Stream typeVideo, video and audio
- AudiocompressieG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Netwerk
- Remote Connection128
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
- Couple16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power≤200W
- Standard IEEE 802.3 af/at
- INVAL
- RAID-TypeNVT
Hulpinterface
- ESATA1 eSATA interface
- SATA4 SATA-interfaces
- CapacityUp to 14 TB capacity for each HDD
- Serial Interface2 RS-485 (half-duplex), 1 RS-232
- USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarm In/Out16/9
- Power 12VAdjustable 12 VDC, 1 A power output for external alarm device; Power turns on when alarm output is activated.
- *: Ctrl 12V power supply is controlled by alarm output 9.
- Current 12V12 VDC, 1 A output power
Algemeen
- Power supply100 to 240 V AC, 50 to 60 Hz
- Consumption≤15W (without HDD and PoE off)
- Operating temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working humidity10% to 90%
- Chassis19-inch rack-mounted 1.5U chassis
- Size (W × D × H)445 × 400 × 75 mm ( 17.5" × 15.7" × 3.0")
- ≤ 5 kg (without HDD, 11 lb.)
