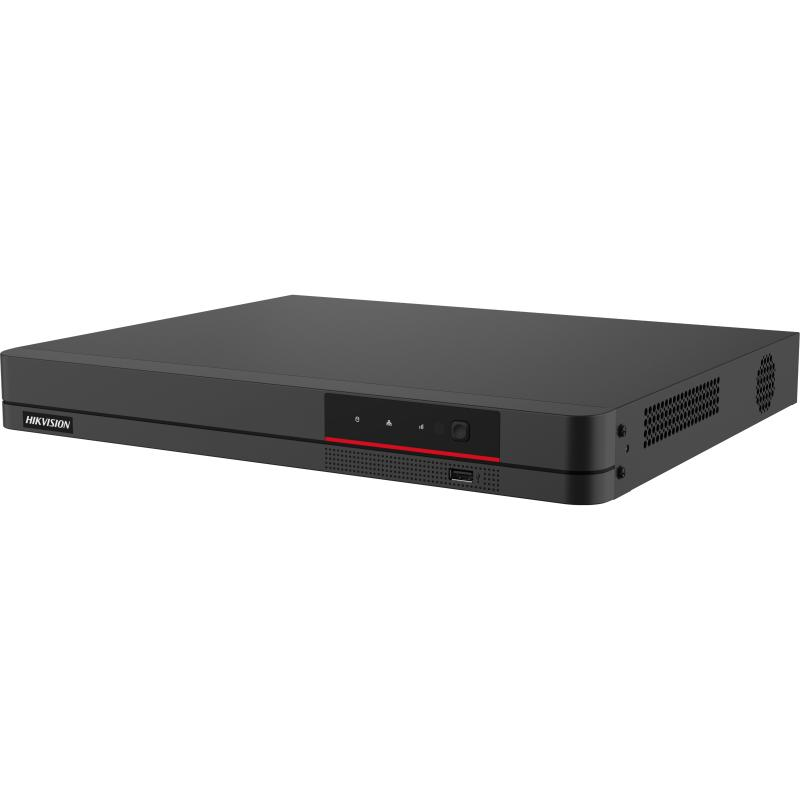

The DS-7608NI-K2/8P/4G 8-channel 4K NVR with HDMI, 4G, and PoE is a recorder that is widely used in locations where there is no fixed internet connection. The 4G SIM slot in this recorder allows you to easily establish an internet connection. You can view the camera footage via the free HikConnect app.
The DS-7608NI-K2/8P/4G (NVR) is a next-generation recorder that combines multiple advanced technologies, such as audio and video decoding, embedded system technology, storage technology, network technology, and intelligent technology.
The NVR can function both as a standalone recorder and in conjunction with other devices to form a comprehensive surveillance system.
This NVR is a Plug & Play device and can record at resolutions up to 8 megapixels (4K). The HDMI output supports video resolutions up to 4K. You can connect the cameras directly to the recorder.
You can also connect cameras to the NVR if they are connected elsewhere on the network—for example, via a switch.
Internally, it features a SATA port for up to 2 hard drives with a total capacity of 6 TB.
Of course, you can also access this recorder via the Hik-Connect app or in your web browser.
Specifications:
- Motion Detection 2.0
- Human/Vehicle Analysis - 4-ch
Video and Audio - IP video input - 8-channel
- Inbound bandwidth - 80 Mbps
- Outbound bandwidth - 80 Mbps
- HDMI Output - 1-channel, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
- VGA output - 1-channel, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output Mode - Simultaneous HDMI/VGA output
- Audio output - 1-channel, RCA (line level, 1 kΩ)
- Two-way audio - 1-channel, RCA (2.0 Vp-p, 1 kΩ)
Decoding - Decoding formats: H.265+/H.265/H.264+/H.264
- Recording Resolution - 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous playback: 8-channel
- Decoding Capabilities - 1 channel at 8 MP (30 fps)/3 channels at 4 MP (30 fps)/6 channels at 1080p (30 fps)
- Stream type - video, video and audio
- Audio compression - G.711 ulaw, G.711 alaw, G.722, G.726, AAC, MP2L2
Network - Network interface - 1 RJ-45 10/100 Mbps auto-negotiating Ethernet interface
- Network Protocol - TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Remote Connection - 32
PoE - Interface - 8 RJ-45 10/100 Mbps auto-negotiating Ethernet interfaces
- Power - ≤ 80 W
- Standard - IEEE 802.3 af/at
Wireless specifications - SIM/UIM Card Slot - 1 micro-SIM card slot, on rear panel
- SMA antenna interface –
1 4G interface, antenna module cable length: 3 m; 1
ANT interface for GPS antenna (GPS antenna is optional) - Wireless standard -
GSM/EDGE: 850/900/1800 MHz
WCDMA: B1/B5/B8
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
Interface - SATA - 2 SATA interfaces
- Capacity - Up to 8 TB capacity per drive
- USB Interface -
Front panel: 1 × USB 2.0;
Rear panel: 1 × USB 2.0
General - Power Supply - 48 VDC, 2.5 A
- Power Consumption - ≤ 15 W (without HDD and PoE off)
- Operating temperature - -10 °C to 55 °C (14 °F to 131 °F)
- Operating humidity - 10% to 90%

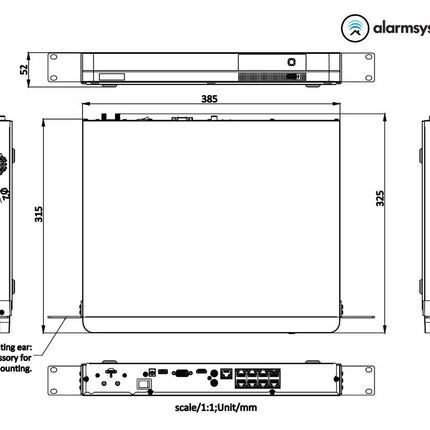

- Dimensions - (W × D × H) 385 × 315 × 52 mm (15.2" × 12.4" × 2.0")
- Weight - ≤ 3 kg (without HDD, 6.6 lb.)
